Glass Configuration: 5mm + 22A + 5mm |
|
| Thermal Insulation | 2.6 W/(m²·K) |
| Sound Insulation | 36 dB (Rw) |
| Water Tightness | 700 Pa |
| Air Tightness | ≤ 0.8 m³/(m·h) |
| Wind Resistance | 5.0 kPa |
|
Glass Configuration: 5mm + 22Ar + 5Low-E |
|
| Thermal Insulation | 1.5 W/(m²·K) |
| Sound Insulation | 36 dB (Rw) |
| Water Tightness | 700 Pa |
| Air Tightness | ≤ 0.8 m³/(m·h) |
| Wind Resistance | 5.0 kPa |
|
Glass Configuration: 5 + 12Ar + 5 + 12Ar + 5Low-E |
|
| Thermal Insulation | 1.1 W/(m²·K) |
| Sound Insulation | 48 dB (Rw) |
| Water Tightness | 700 Pa |
| Air Tightness | ≤ 0.8 m³/(m·h) |
| Wind Resistance | 5.0 kPa |
|
Glass Configuration: 5 + 12Ar + 5 + 12A + 5Low-E Double silver |
|
| Thermal Insulation | 0.9 W/(m²·K) |
| Sound Insulation | 48 dB (Rw) |
| Water Tightness | 700 Pa |
| Air Tightness | ≤ 0.8 m³/(m·h) |
| Wind Resistance | 5.0 kPa |

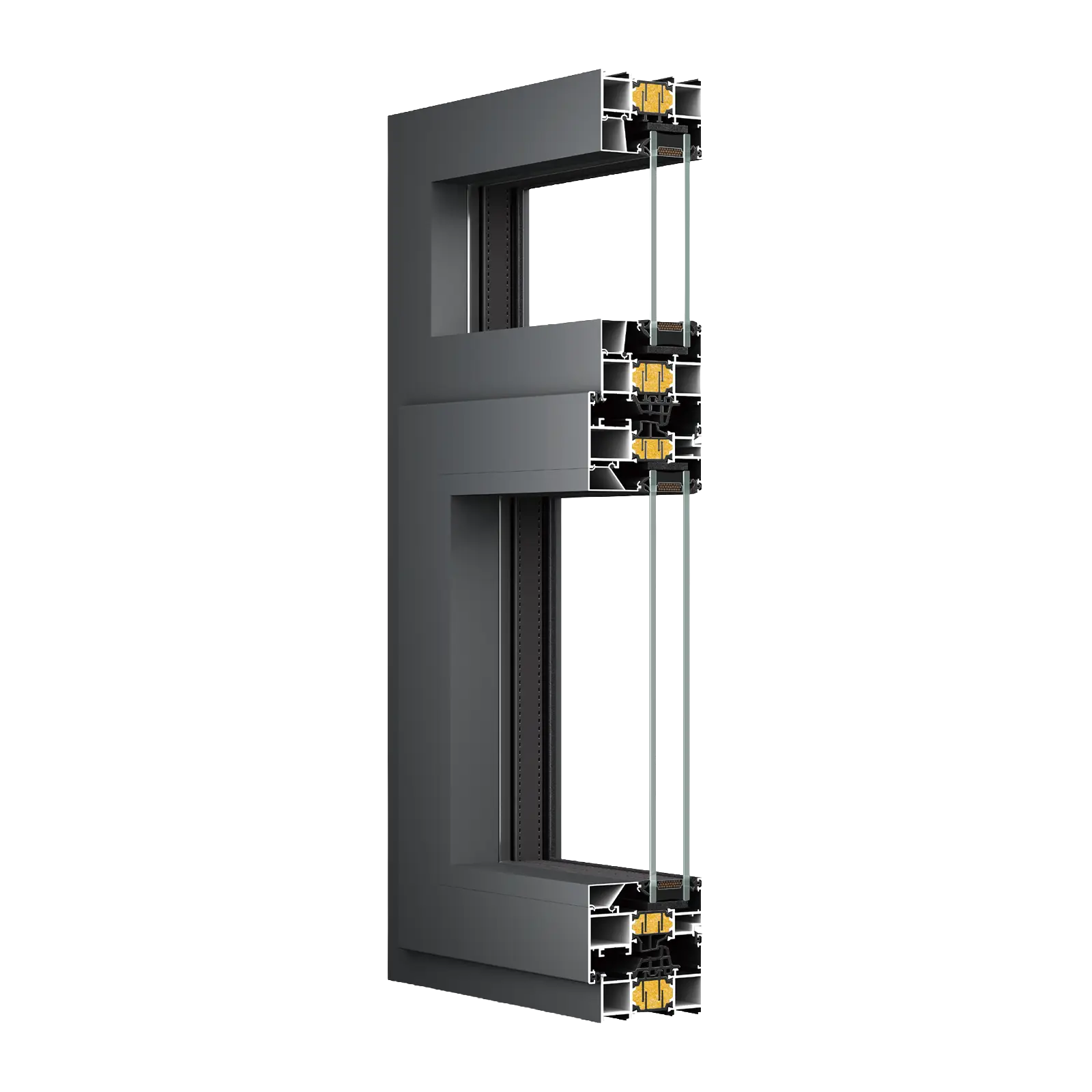

BOIZE’s 75 Series thermal break window systems are engineered to deliver superior dual-function performance, perfectly balancing secure ventilation with effortless operation. Setting a new benchmark for modern architectural fenestration, these systems blend sleek sightlines with robust structural integrity, making them an ideal choice for high-end residential and commercial developments.

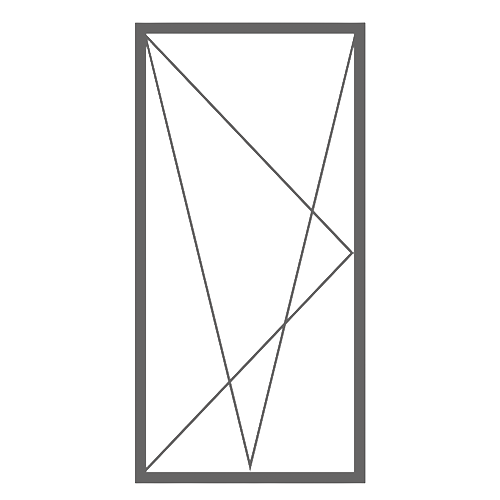

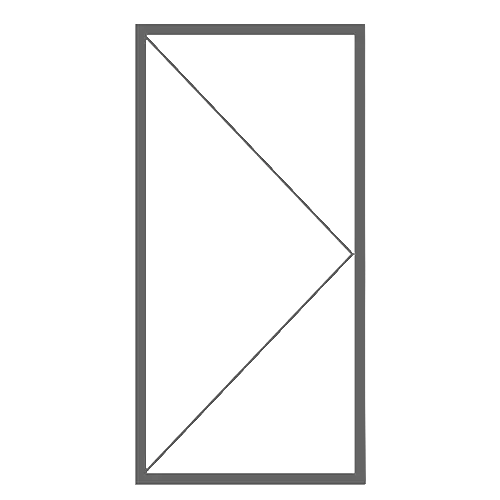

Featuring an advanced thermal break structure and multi-chamber design, the 75 Series ensures exceptional energy efficiency and indoor climate control. A key highlight of this system is its versatile hardware compatibility—supporting both Tilt & Turn and Inward Casement opening modes. This allows for safe, draft-free room ventilation in the tilt position while offering maximum-view swinging access when fully opened, all while accommodating high-performance glazing configurations up to multi-cavity Low-E options to significantly minimize thermal transfer.
Beyond versatile ventilation, the 75 Series excels in acoustic insulation, water tightness, and wind-load resistance. Engineered with precision sealing and heavy-duty hardware, it provides laboratory-tested sound reduction and reliable safety under severe weather conditions, delivering architects and homeowners with an ultimate fenestration solution that stands the test of time.
