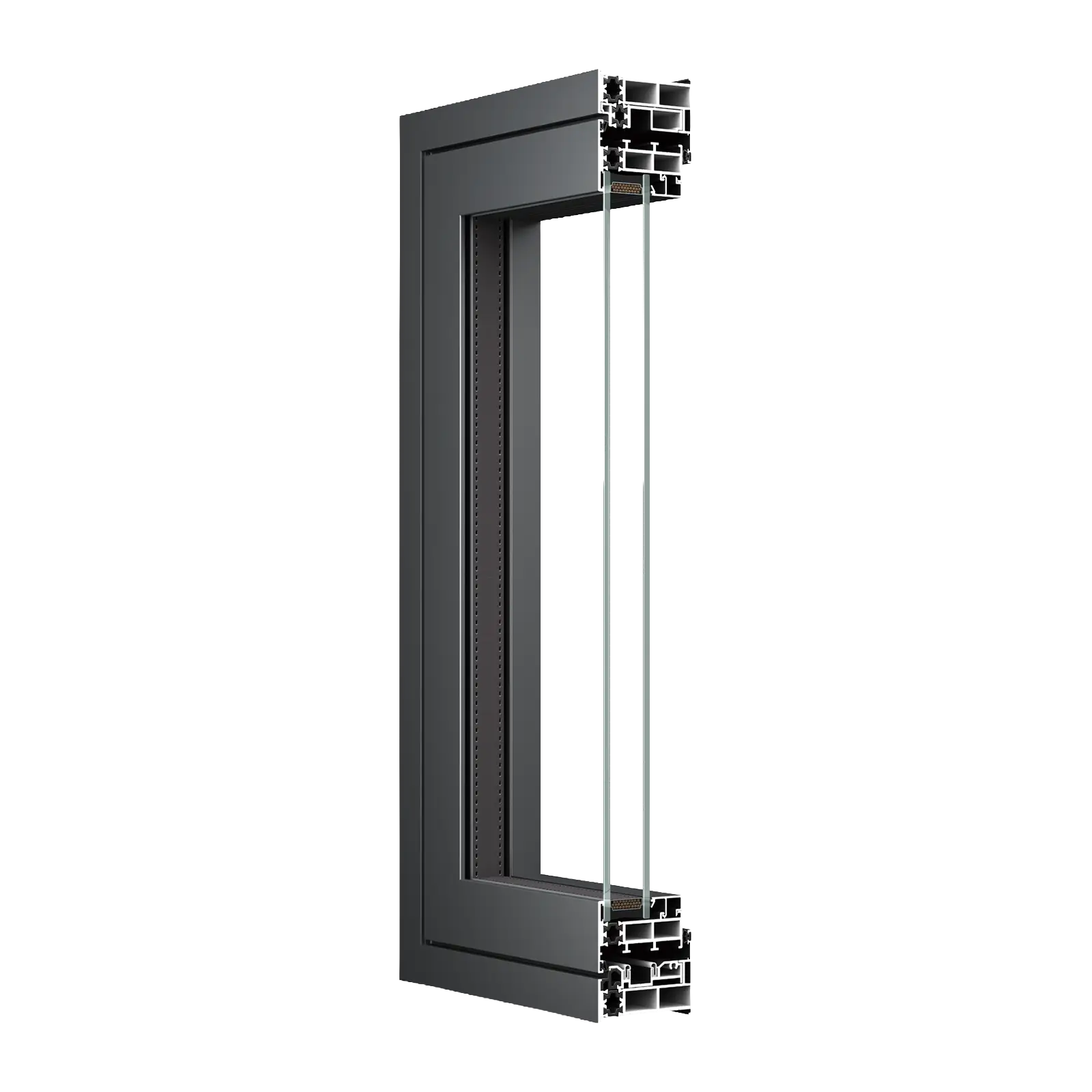

73 Thermal Break Aluminum Folding Door System

CATEGORY

Thermal Break Aluminum Door Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 22A + 5mm

2.6 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5mm + 22Ar + 5Low-E

1.5 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12Ar + 5Low-E

1.1 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12A + 5Low-E Double silver

0.9 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

DESCRIPTION

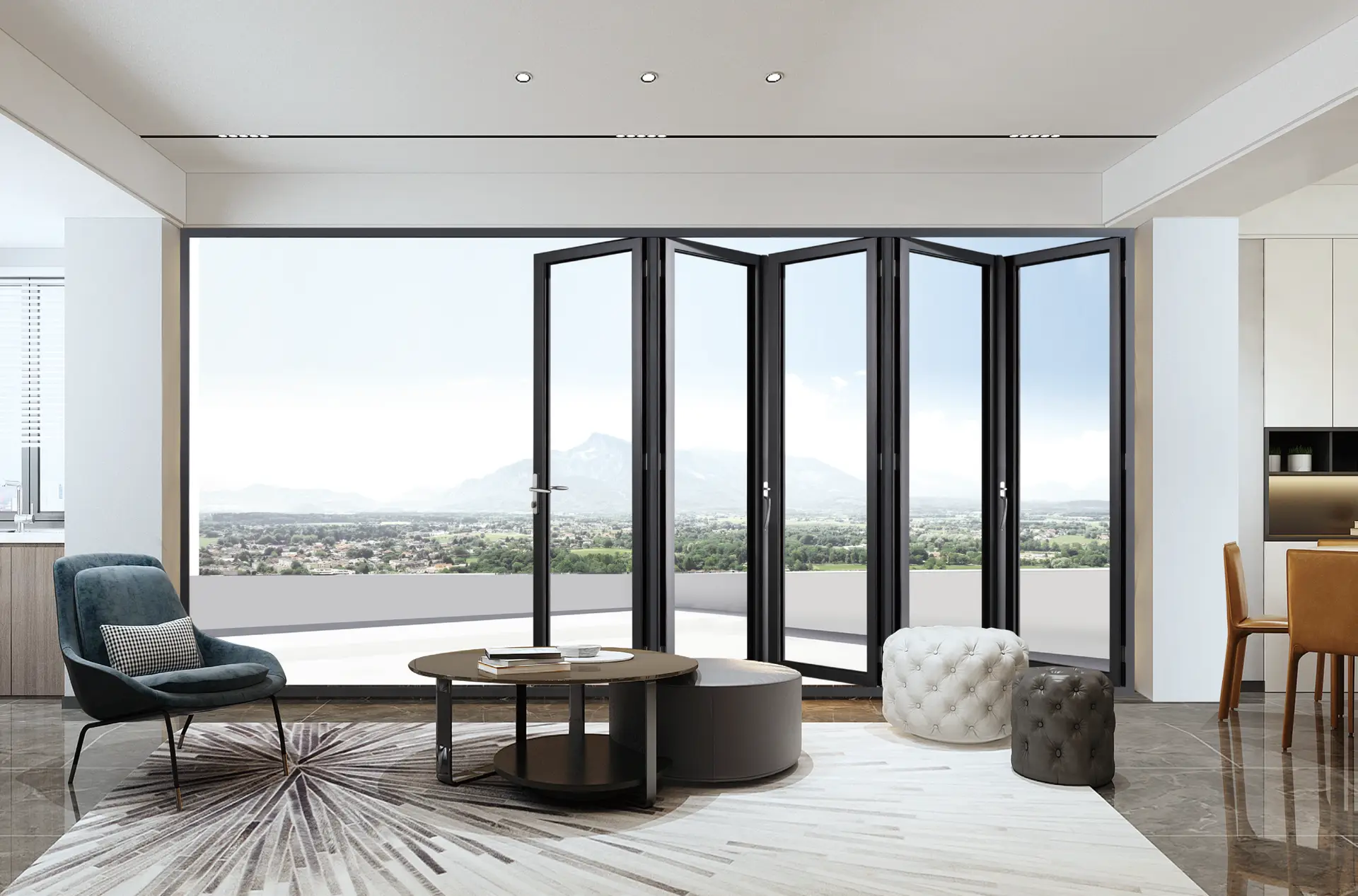

The BIOZE 73 Thermal Break Aluminum Folding Door System is a transformative architectural element engineered to completely dissolve the boundary between indoor and outdoor living spaces. Utilizing primary 6063-T5 aluminum with a robust 1.8mm profile thickness, this bi-fold system smoothly stacks away to offer up to 90% clear opening space. It is highly versatile, supporting multiple panel configurations (from 1+1 up to 8+0) to fit a variety of custom spatial requirements for patios, commercial storefronts, and garden enclosures.

Beyond its mechanical flexibility, the 73 series incorporates superior weatherproofing technologies. The multi-channel sealing structure, combined with high-performance PA66 thermal break strips, ensures strict thermal isolation and prevents energy loss. The overlapping frame and sash design create a high-compression barrier against driving rain, while effectively sealing out dust and wind.

Finished with industry-leading AkzoNobel powder coating, the system is globally warranted for 10 years against fading, peeling, and environmental wear. Paired with heavy-duty architectural hardware, the BIOZE 73 Folding Door guarantees effortless gliding and secure locking, delivering a luxurious, highly durable, and climate-resilient solution for modern building designs.

OPENING METHODS
