75/110 Thermal Break Sliding Window System

CATEGORY

Thermal Break Aluminum Window Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 12A + 5mm

3.0 W/(m²·K)

30 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

1.0 kPa

5mm + 12Ar + 5Low-E

1.8 W/(m²·K)

30 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

1.0 kPa

DESCRIPTION

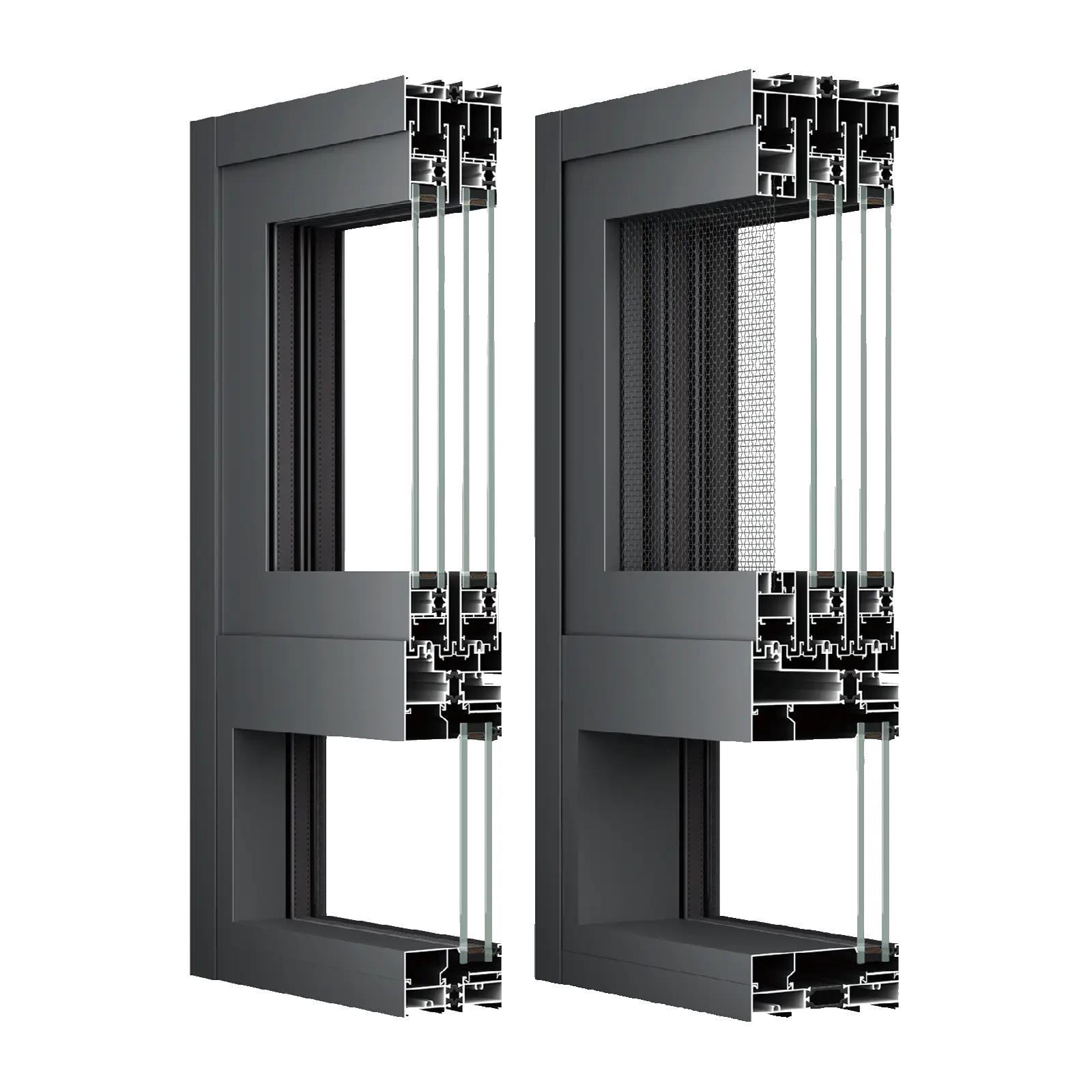

BIOZE’s 75/110 Thermal Break Sliding Window System is masterfully engineered to transform living spaces by maximizing natural light and offering seamless transitions between indoor and outdoor environments. Designed with high-performance thermal break technology and a robust multi-chamber aluminum profile, this system delivers exceptional energy efficiency and climate control. Whether for sprawling residential balconies or large-scale commercial façades, the 110-series’ heavy-duty frame provides the structural rigidity required for panoramic glass expanses without compromising on ease of movement.

The true power of this system lies in its unparalleled versatility. Featuring customizable multi-track options—from standard dual-track configurations to complex 3-track systems with integrated high-durability insect screens—it adapts perfectly to diverse spatial requirements. Homeowners and architects can specify 2+1 or 4+2 track layouts to balance ventilation needs with insect protection, all while maintaining the smooth, silent gliding performance that defines a premium sliding window experience.

Beyond its operational flexibility, the system is a powerhouse in durability and environmental protection. Precision-engineered sealing ensures superior acoustic comfort and weather tightness, keeping harsh external elements at bay while maintaining a quiet, serene interior. Combined with its reliable wind-load resistance and sleek, modern finish, BIOZE’s 75/110 sliding series offers a tailor-made fenestration solution that intelligently adapts to any architectural layout or ventilation demand.

Modern Villa Exterior with 75 110 Thermal Break Sliding Windows

OPENING METHODS

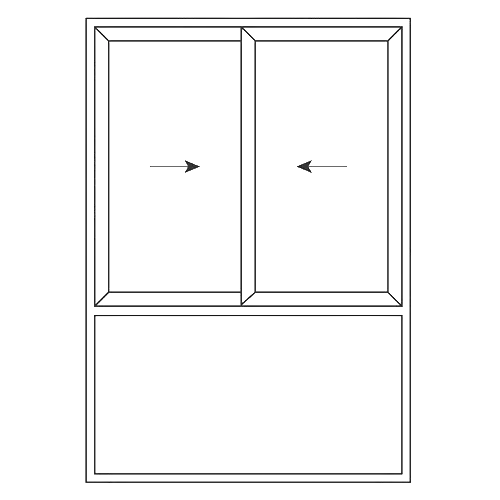

Two Tracks & Two Panels

Three Track 2+1 with Screen

Three Tracks & Three Panels

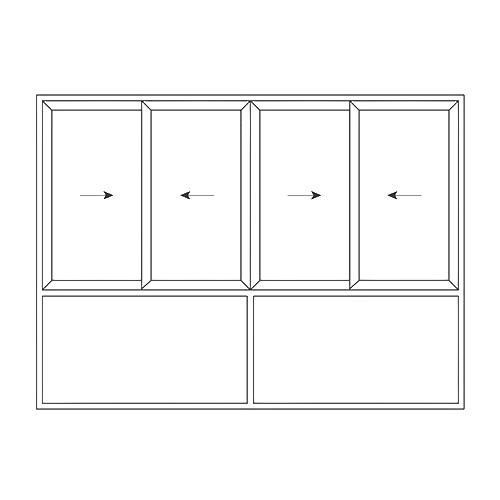

Two Tracks & Four Panels

Three Track 4+2 with Screen
