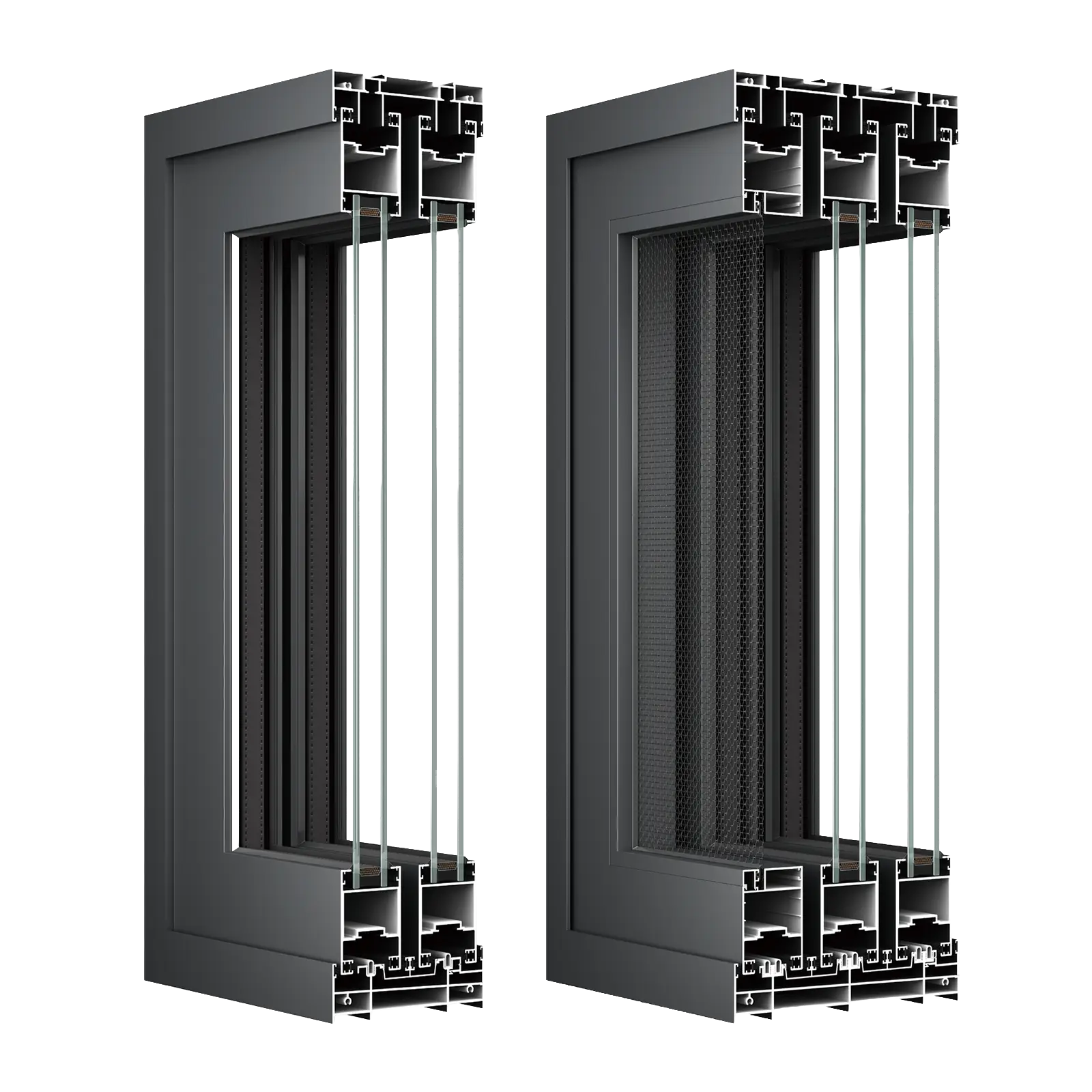

BIOZE 70 Heavy-Duty Slimline Sliding Door System Profile Cross Section Detail

70 Aluminum Heavy-Duty Slimline Sliding Door

CATEGORY

Aluminum Door Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 20A + 5mm

3.0 W/(m²·K)

33 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

2.5 kPa

5mm + 20Ar + 5Low-E

1.8 W/(m²·K)

33 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

2.5 kPa

DESCRIPTION

The BIOZE 70 Heavy-Duty Slimline Sliding Door System ingeniously merges the structural brawn of a heavy-duty door with the refined, minimalist aesthetics of a narrow-frame design. Engineered with a reinforced 3.0mm sash thickness and a 1.8mm primary aluminum frame, it offers outstanding rigidity and wind resistance up to 2.5 kPa without the bulky appearance of traditional systems. The multi-track options feature an integrated durable insect screen, ensuring living spaces remain insect-free while benefiting from maximum natural airflow. Ideal for modern architectural designs that refuse to compromise on strength, the 70 series delivers enduring performance, smooth operation, and sleek visual appeal for coastal and tropical environments.

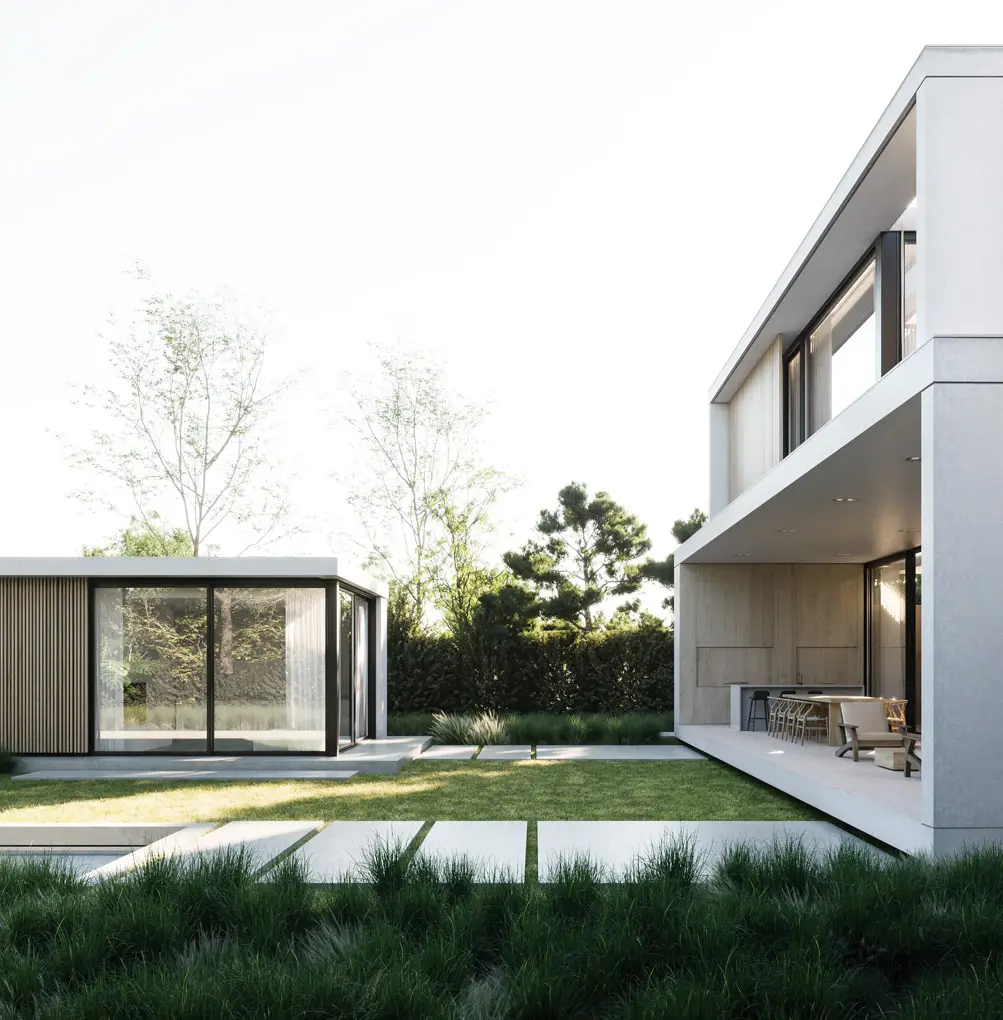

Modern Patio Exterior featuring BIOZE 70 Heavy-Duty Slimline Sliding Door System

OPENING METHODS

2-Track 2-Panel

2-Track 4-Panel

3-Track 2-Panel with Insect Screen

3-Track 3-Panel

3-Track 4-Panel with Insect Screen
