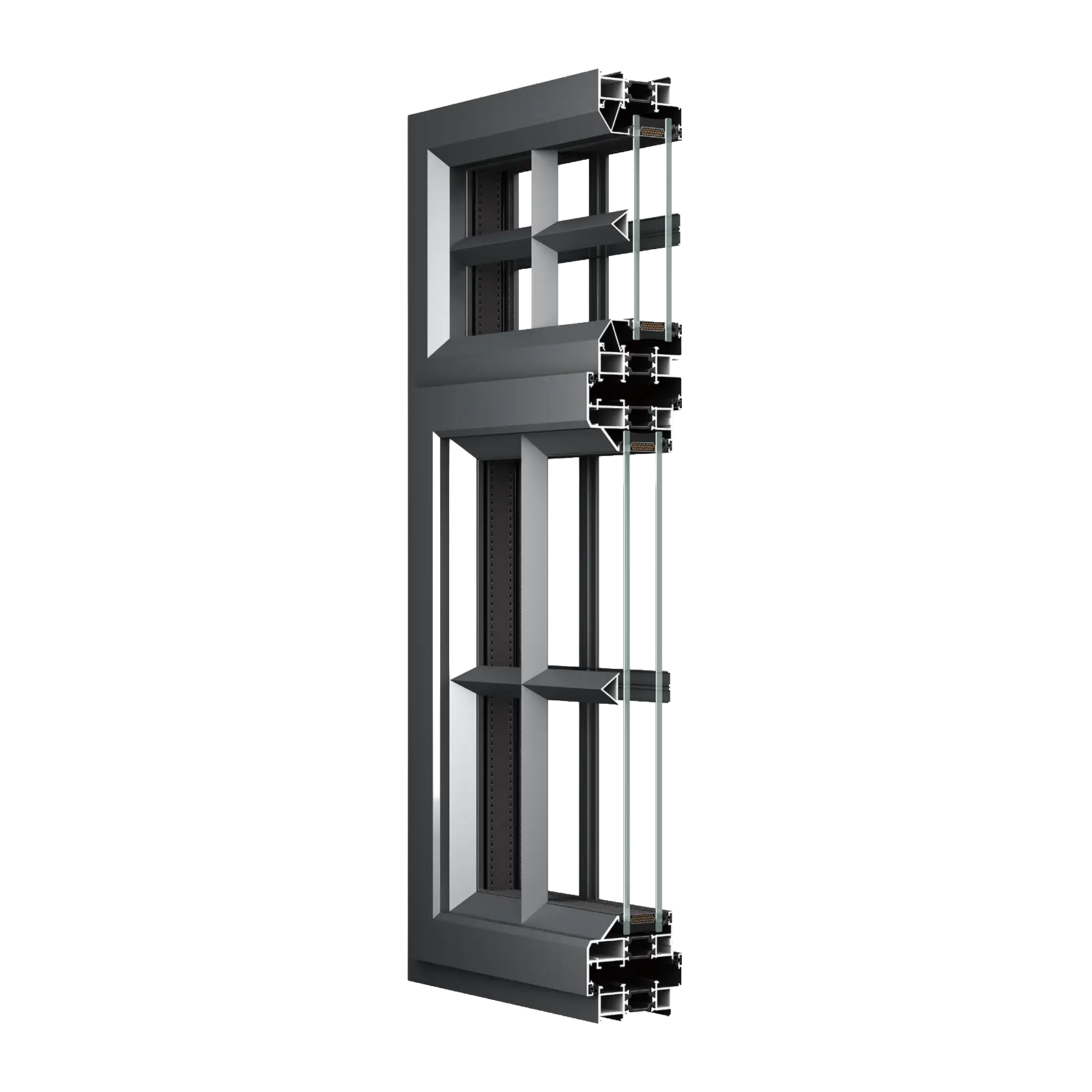

BIOZE 70 Aluminum French Casement Window Profile Cross Section Detail

70 Aluminum French Window

CATEGORY

Standard Aluminum Window Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 22A + 5mm

2.6 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5mm + 22Ar + 5Low-E

1.5 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12Ar + 5Low-E

1.1 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12A + 5Low-E Double silver

0.9 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

DESCRIPTION

Engineered for larger architectural openings and enhanced structural rigidity, the BIOZE 70 French Casement Window utilizes a reinforced 70mm primary aluminum profile. This upgraded depth supports higher wind loads and heavier glass configurations, making it perfectly suited for expansive arched windows, floor-to-ceiling designs, and grand villa facades. The integrated multi-point locking and EPDM sealing system ensures a formidable barrier against tropical monsoon rains and exterior dust. Combining the sophisticated visual appeal of traditional French grilles with modern architectural strength, the 70 series delivers enduring performance and striking curb appeal for premium residential and commercial developments.

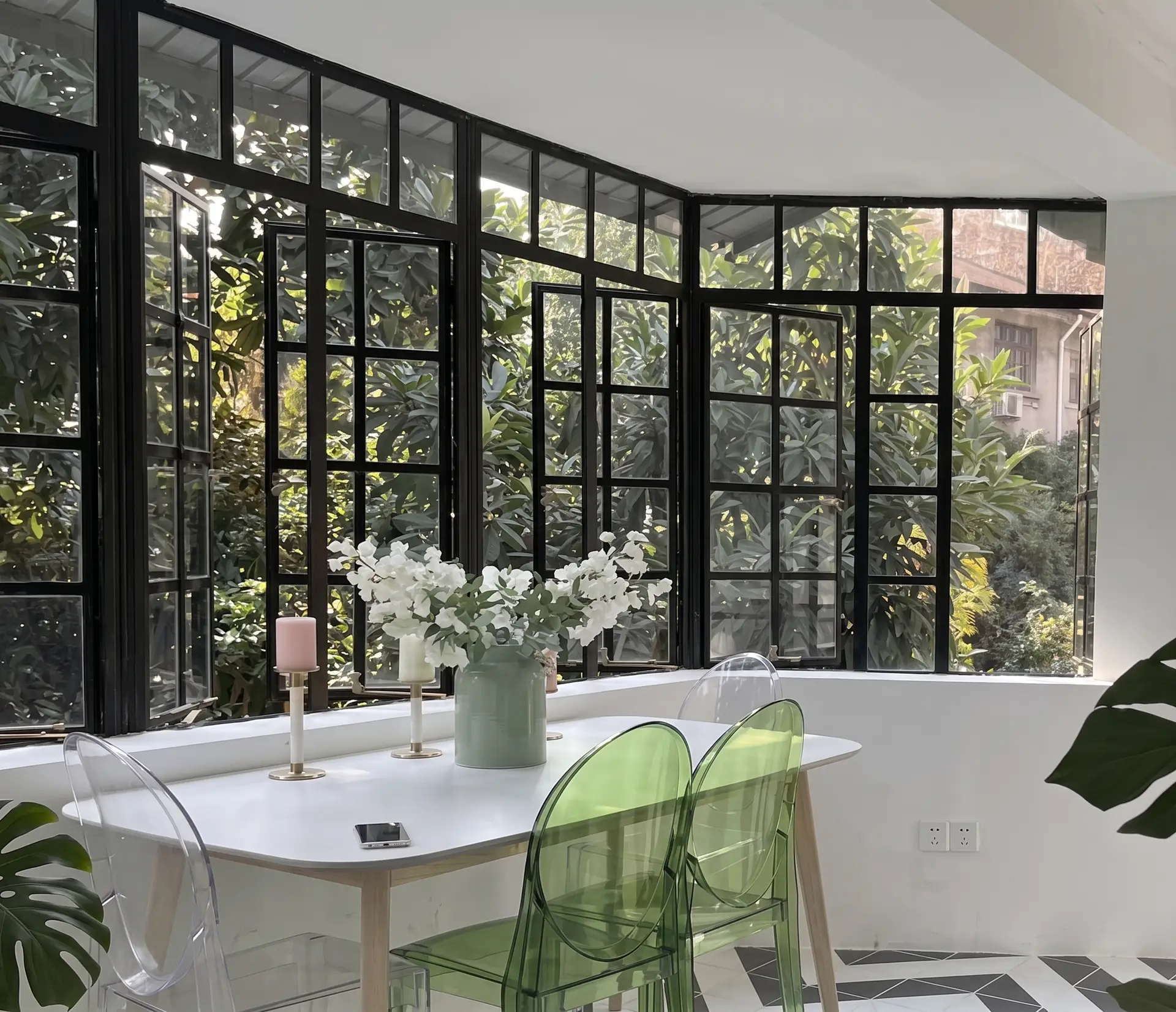

Classic Villa Facade featuring BIOZE 50 French Casement Windows

OPENING METHODS

Outward Casement

Opening Method Outward Awing

Outward Awing
