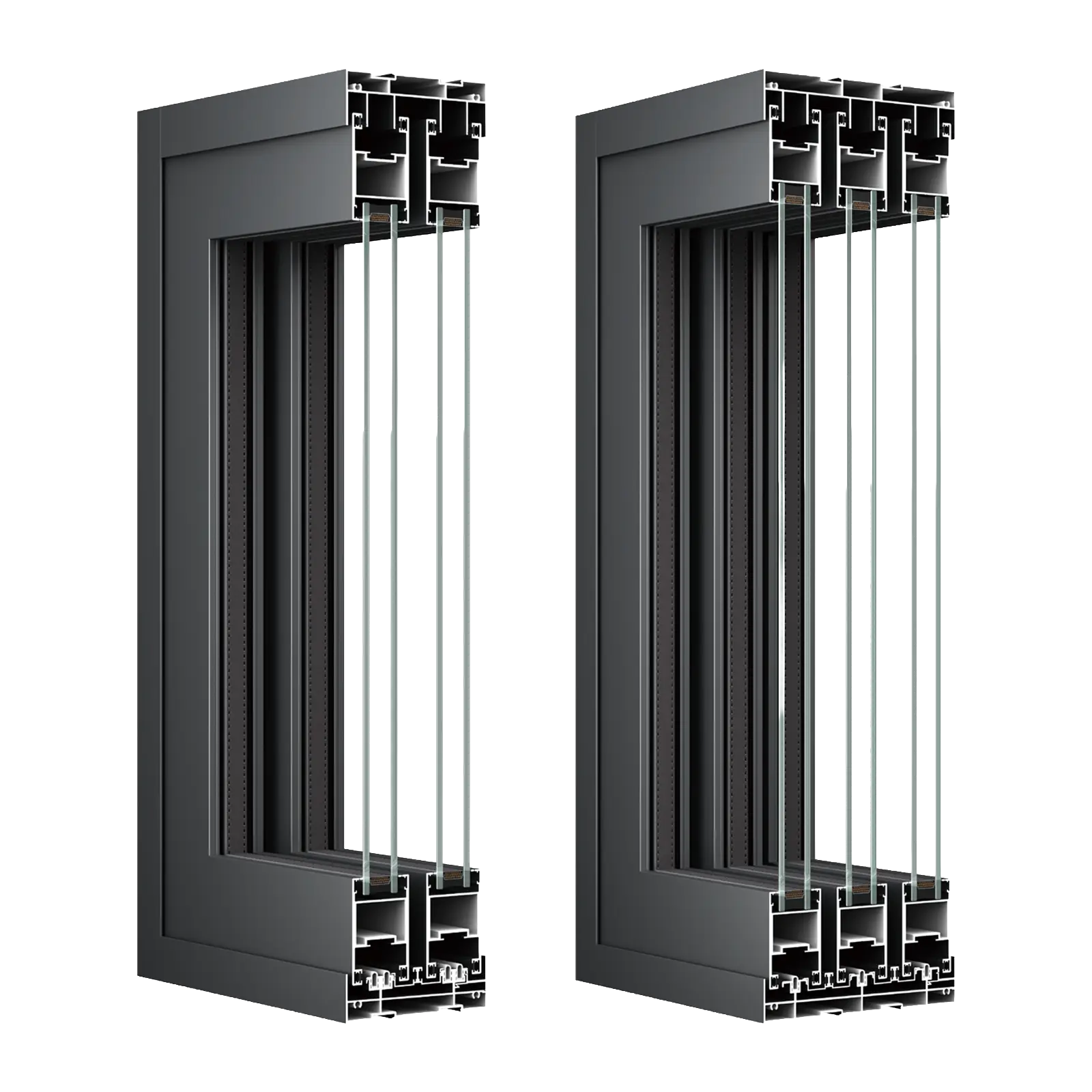

BIOZE 65 Slimline Sliding Door System Profile Cross Section Detail

65 Aluminum Slimline Sliding Door

CATEGORY

Aluminum Door Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 16A + 5mm

3.0 W/(m²·K)

30 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

1.8 kPa

5mm + 16Ar + 5Low-E

1.8 W/(m²·K)

30 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

1.8 kPa

DESCRIPTION

The BIOZE 65 Slimline Sliding Door System is a highly efficient, space-saving architectural solution designed to maximize daylight and ventilation while offering exceptional project cost-effectiveness. Featuring a streamlined 106mm/161mm frame with a sturdy 3.0mm sash thickness, it provides reliable structural support in a sleek, minimalist profile. The system includes versatile three-track options with a fully integrated insect screen, making it an indispensable choice for residences in warm, humid regions requiring continuous airflow and pest control. Combining dependable weatherproofing, smooth gliding hardware, and a durable AkzoNobel powder-coated finish, the 65 series delivers long-lasting aesthetic and functional value for modern apartments, villas, and commercial spaces.

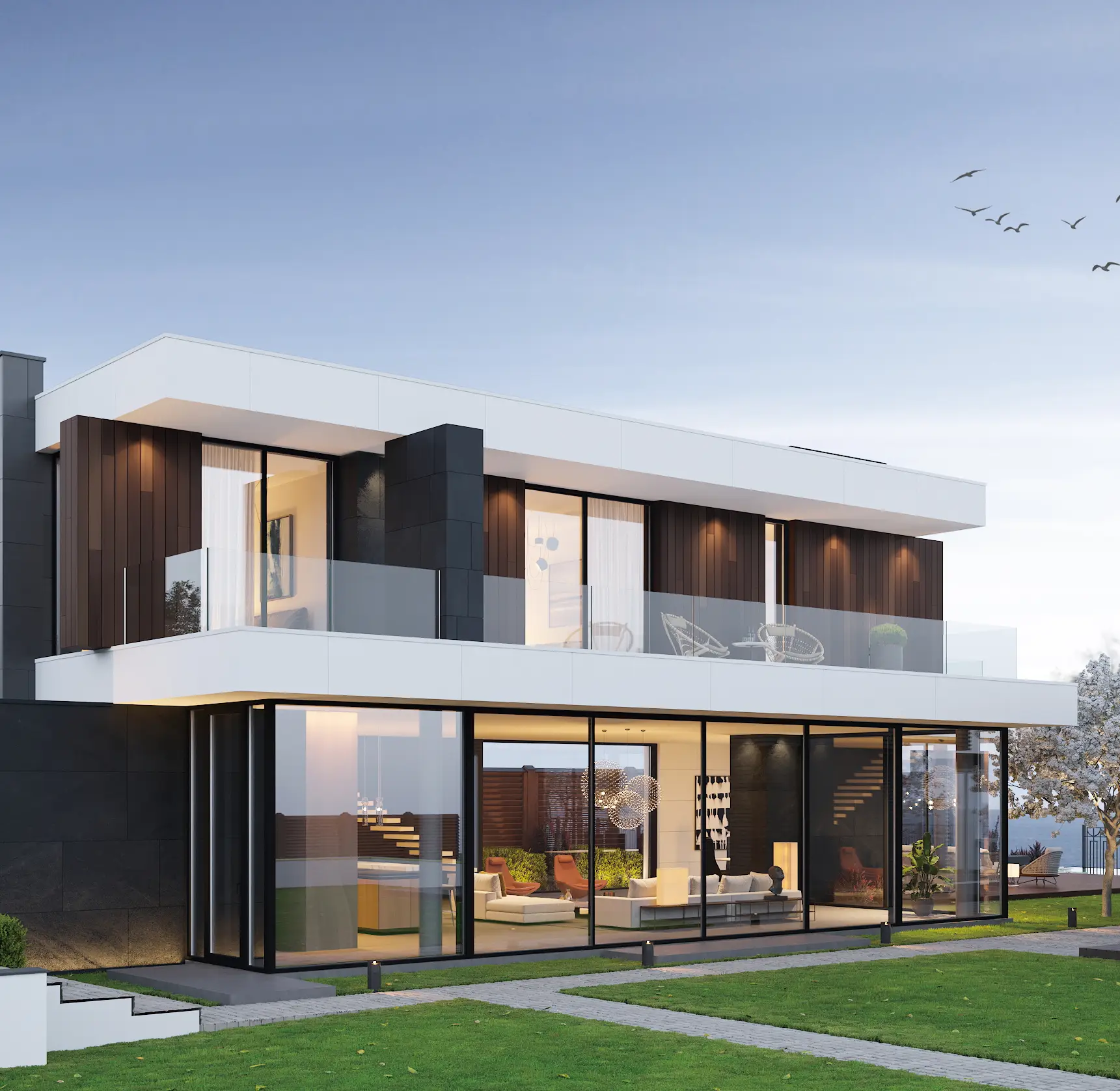

Modern Home Exterior featuring BIOZE 65 Slimline Sliding Door System

OPENING METHODS

2-Track 2-Panel

2-Track 4-Panel

3-Track 2-Panel with Insect Screen

3-Track 3-Panel

3-Track 4-Panel with Insect Screen
