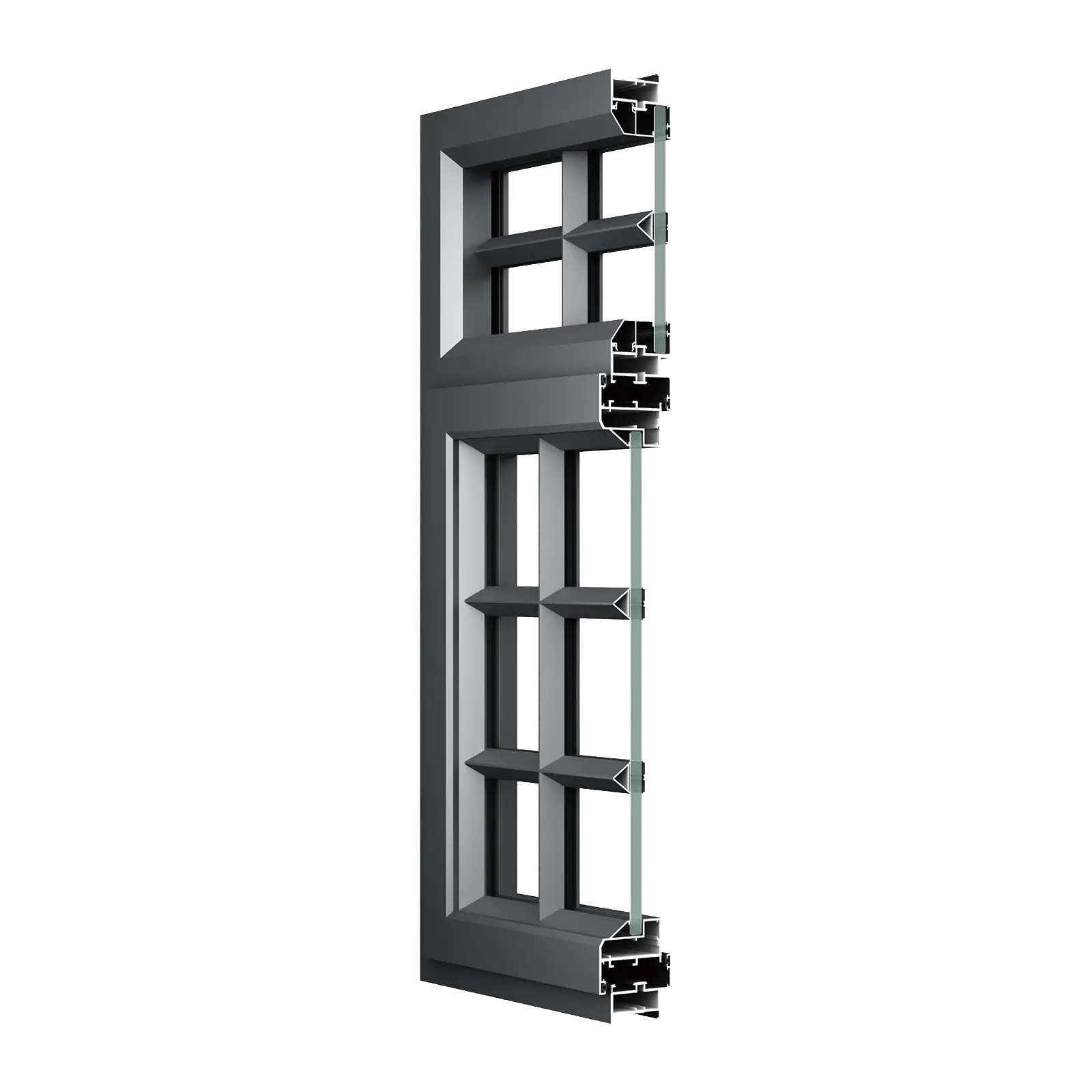

BIOZE 50 Aluminum French Casement Window Profile Cross Section Detail

50 Aluminum French Window

CATEGORY

Standard Aluminum Window Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 22A + 5mm

2.6 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5mm + 22Ar + 5Low-E

1.5 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12Ar + 5Low-E

1.1 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12A + 5Low-E Double silver

0.9 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

DESCRIPTION

The BIOZE 50 French Casement Window features a slim, minimalist 50mm frame profile that maximizes natural light penetration while maintaining the classic elegance of divided glass panels. Constructed from high-strength primary aluminum, this system is optimized for interior partitions or exterior facades in warm and tropical environments. The double-sash configuration opens fully without a fixed center mullion, offering a completely clear ventilation space. It is a highly cost-effective fenestration solution that delivers reliable weatherproofing and structural integrity for residential projects requiring authentic European aesthetics with a sleek, modern footprint.



Classic Villa Facade featuring BIOZE 50 French Casement Windows

OPENING METHODS

Outward Casement

Opening Method Outward Awing

Outward Awing
