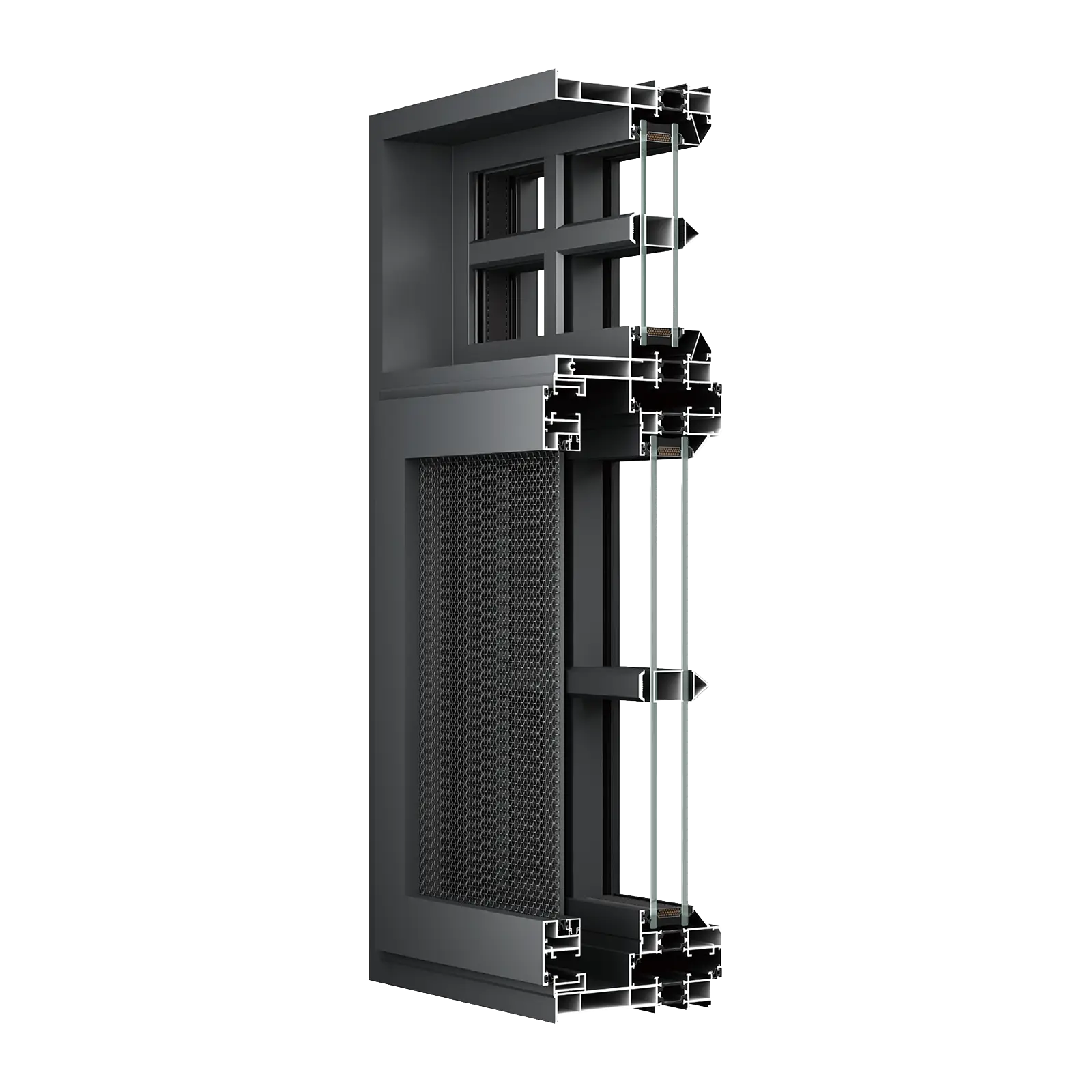

BIOZE 130 Aluminum French Casement Window Profile Cross Section Detail

130 Aluminum French Window

CATEGORY

Standard Aluminum Window Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 22A + 5mm

2.6 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5mm + 22Ar + 5Low-E

1.5 W/(m²·K)

36 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12Ar + 5Low-E

1.1 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

5 + 12Ar + 5 + 12A + 5Low-E Double silver

0.9 W/(m²·K)

48 dB (Rw)

700 Pa

≤ 0.8 m³/(m·h)

5.0 kPa

DESCRIPTION

The BIOZE 130 French Casement Window is a comprehensive, heavy-duty fenestration system designed for maximum security and environmental control. Featuring a deep 130mm profile, this model features an integrated high-strength diamond security mesh (insect screen) directly built into the frame. This seamless dual-function architecture allows for continuous, optimal airflow while completely blocking mosquitoes, insects, and airborne debris—an essential requirement for living spaces in tropical and coastal regions. The robust primary aluminum structure supports oversized French-style divided lites, offering exceptional wind resistance and structural stability for high-end sunrooms, patio enclosures, and luxury estates demanding both classic architectural beauty and uncompromising safety.

Classic Villa Facade featuring BIOZE 50 French Casement Windows

OPENING METHODS

Outward Casement

Opening Method Outward Awing

Outward Awing
