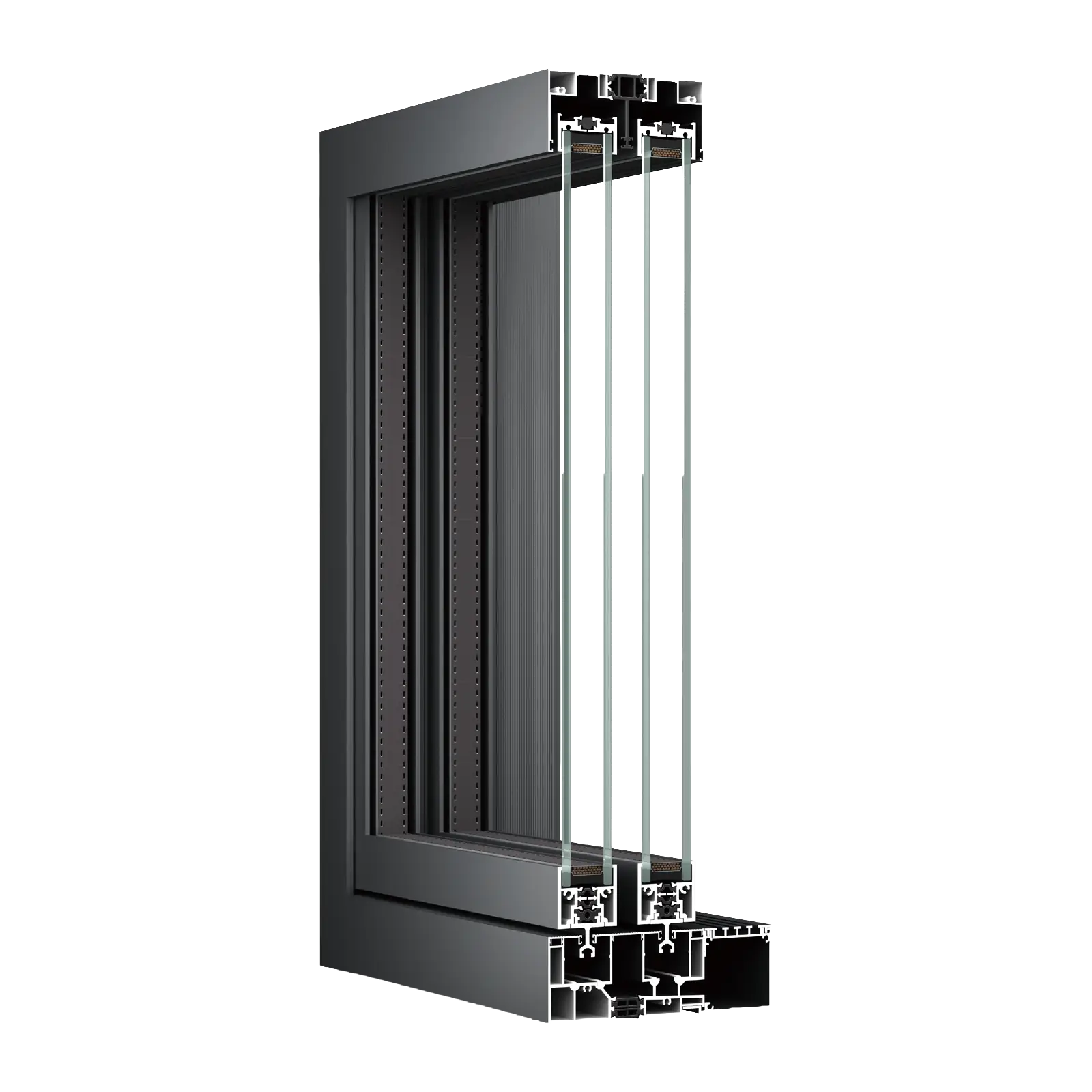

BIOZE 120 Panoramic Sliding Door System Profile Cross Section Detail

120 Aluminum Panoramic Sliding Door

CATEGORY

Aluminum Door Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 27A + 5mm

2.5 W/(m²·K)

36 dB (Rw)

550 Pa

≤ 4.2 m³/(m·h)

4.2 kPa

5mm + 27Ar + 5Low-E

1.8 W/(m²·K)

36 dB (Rw)

550 Pa

≤ 4.2 m³/(m·h)

4.2 kPa

5 + 12Ar + 5 + 12Ar + 5Low-E

1.4 W/(m²·K)

46 dB (Rw)

550 Pa

≤ 4.2 m³/(m·h)

4.2 kPa

5 + 12Ar + 5 + 12A + 5Low-E Double silver

1.1 W/(m²·K)

46 dB (Rw)

550 Pa

≤ 4.2 m³/(m·h)

4.2 kPa

DESCRIPTION

The BIOZE 120 Panoramic Sliding Door System combines sleek, modern aesthetics with formidable structural integrity. Designed with a slim profile that minimizes visual interruption, this system invites abundant daylight into interior spaces while providing panoramic exterior views. Constructed from high-strength 6063-T5 aluminum with a 1.8mm frame and reinforced 3.0mm sash thickness, it is engineered to withstand challenging coastal and tropical environments, delivering an impressive 550 Pa of water tightness and 4.2 kPa of wind resistance. Whether utilized in residential living rooms or commercial storefronts, the 120 series offers a perfect balance of architectural elegance, durable weatherproofing, and smooth, reliable operation.

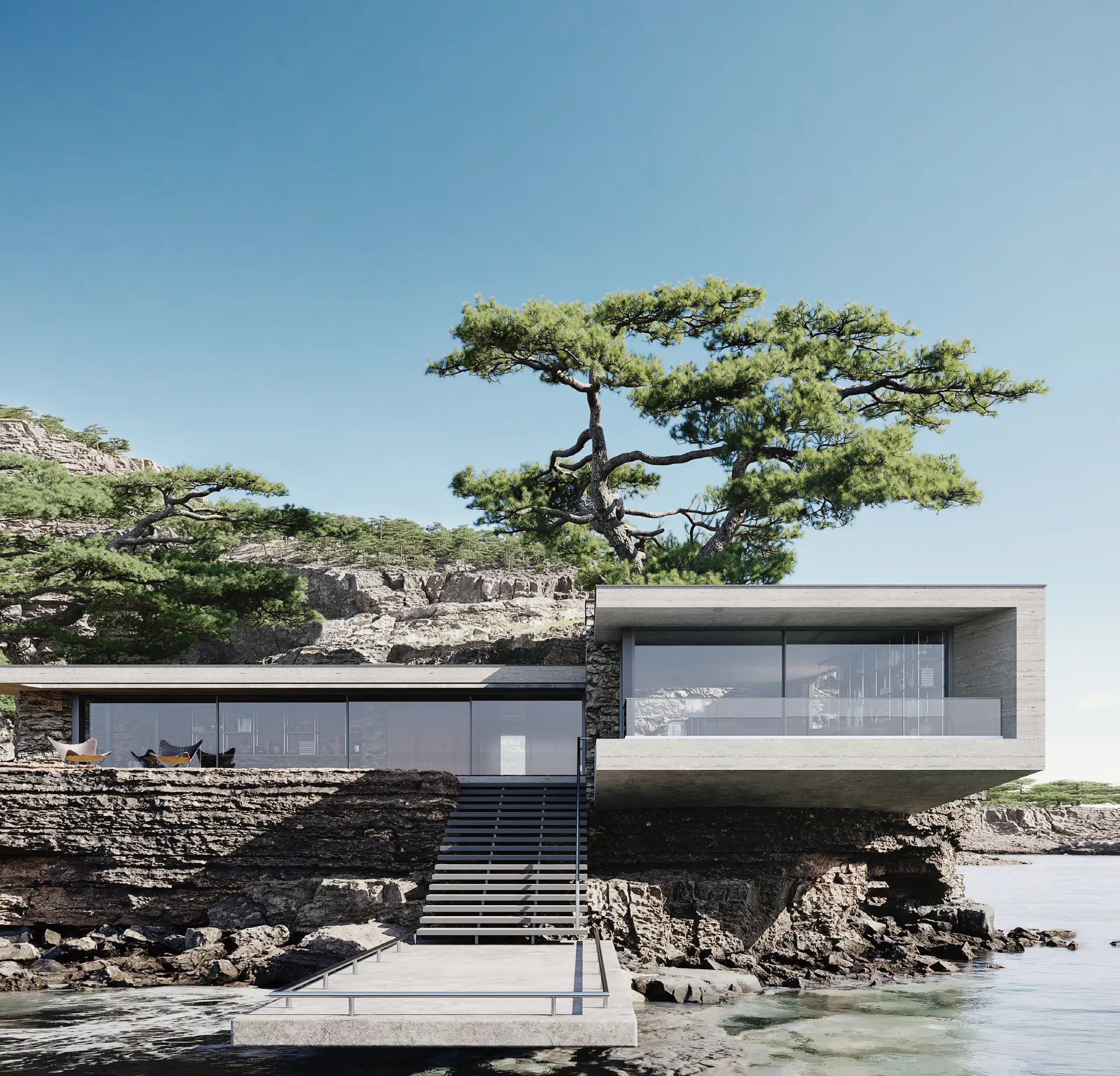

Coastal Villa Exterior featuring BIOZE 120 Panoramic Sliding Door System

OPENING METHODS

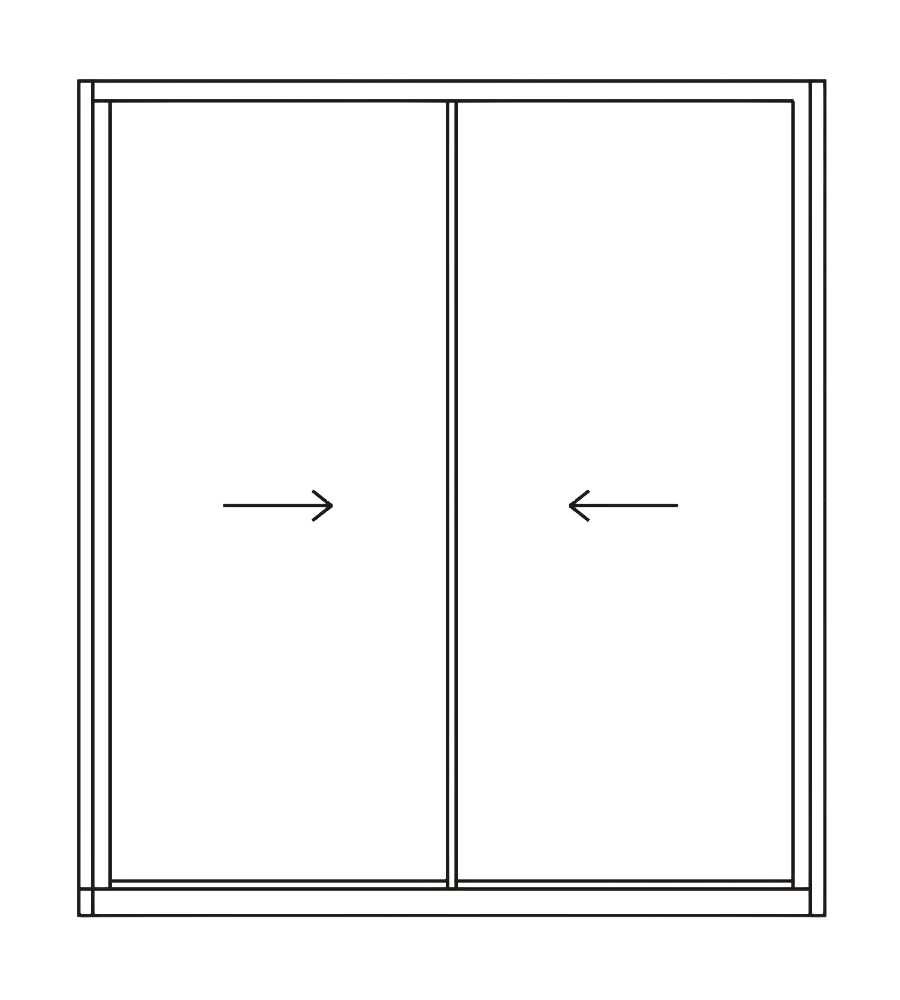

2-Track 2-Panel

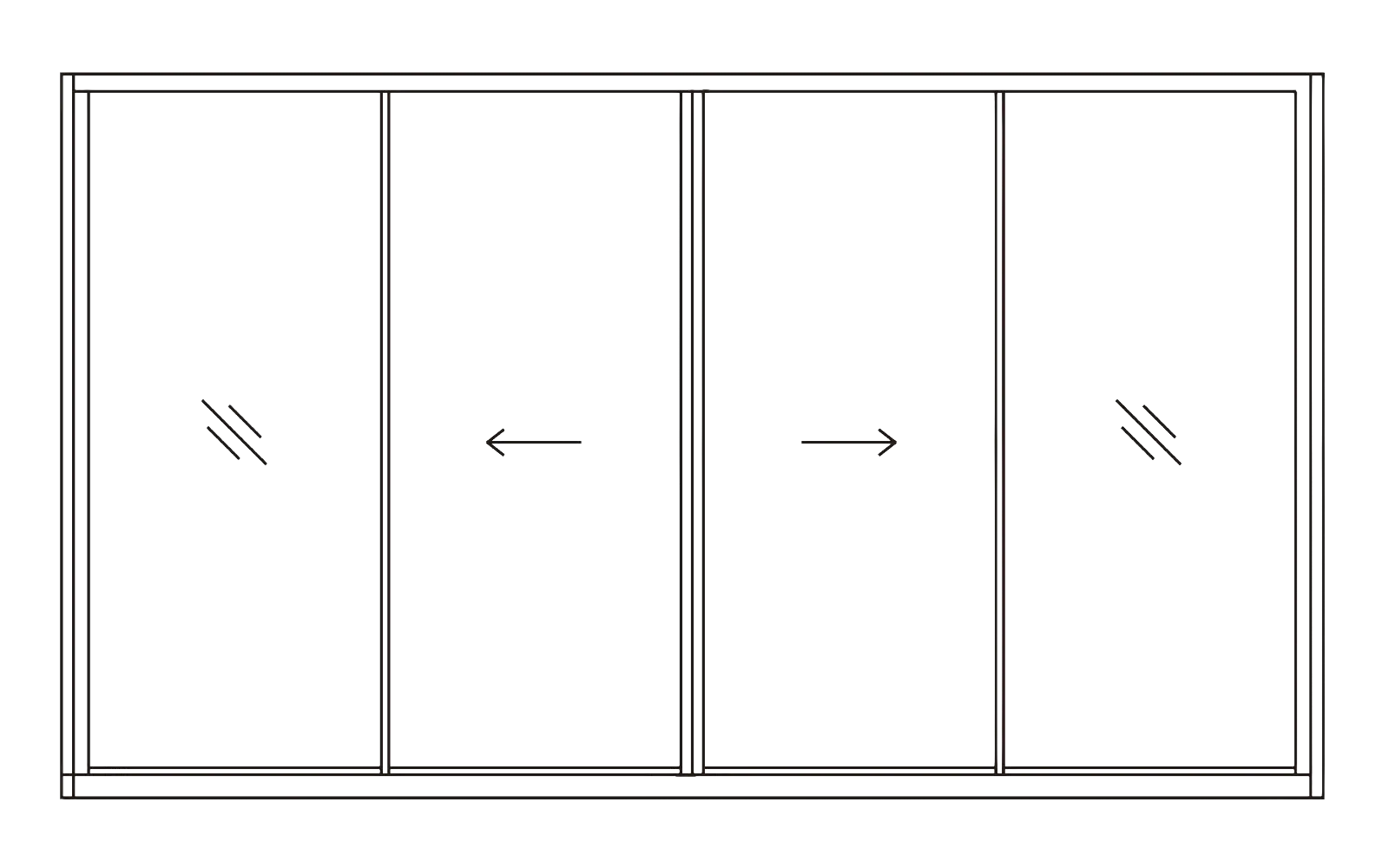

2-Track 4-Panel
