BIOZE 100 Heavy-Duty Sliding Door System Profile Cross Section Detail

100 Aluminum Heavy-Duty Sliding Door

CATEGORY

Aluminum Door Systems

Parameters

PRODUCT PERFORMANCE

PRODUCT PERFORMANCE

Glass Configuration

Thermal Insulation

Sound Insulation

Water Tightness

Air Tightness

Wind Resistance

5mm + 20A + 5mm

3.0 W/(m²·K)

33 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

2.5 kPa

5mm + 20Ar + 5Low-E

1.8 W/(m²·K)

33 dB (Rw)

300 Pa

≤ 7.2 m³/(m·h)

2.5 kPa

DESCRIPTION

The BIOZE 100 Heavy-Duty Sliding Door System is specifically engineered for large architectural openings that demand maximum structural stability and security. Featuring a substantial 126mm/190mm frame and a solid 1.8mm wall thickness, this heavy-duty system effortlessly supports oversized glass panels while ensuring long-term durability. To cater to tropical and subtropical climates, the versatile three-track configuration integrates a high-strength diamond insect screen, allowing for continuous, optimal cross-ventilation while providing a formidable barrier against mosquitoes and debris. Backed by a 10-year warranted AkzoNobel finish, this door system ensures exceptional resistance against UV fading and corrosion, delivering premium performance for upscale residential and commercial projects.

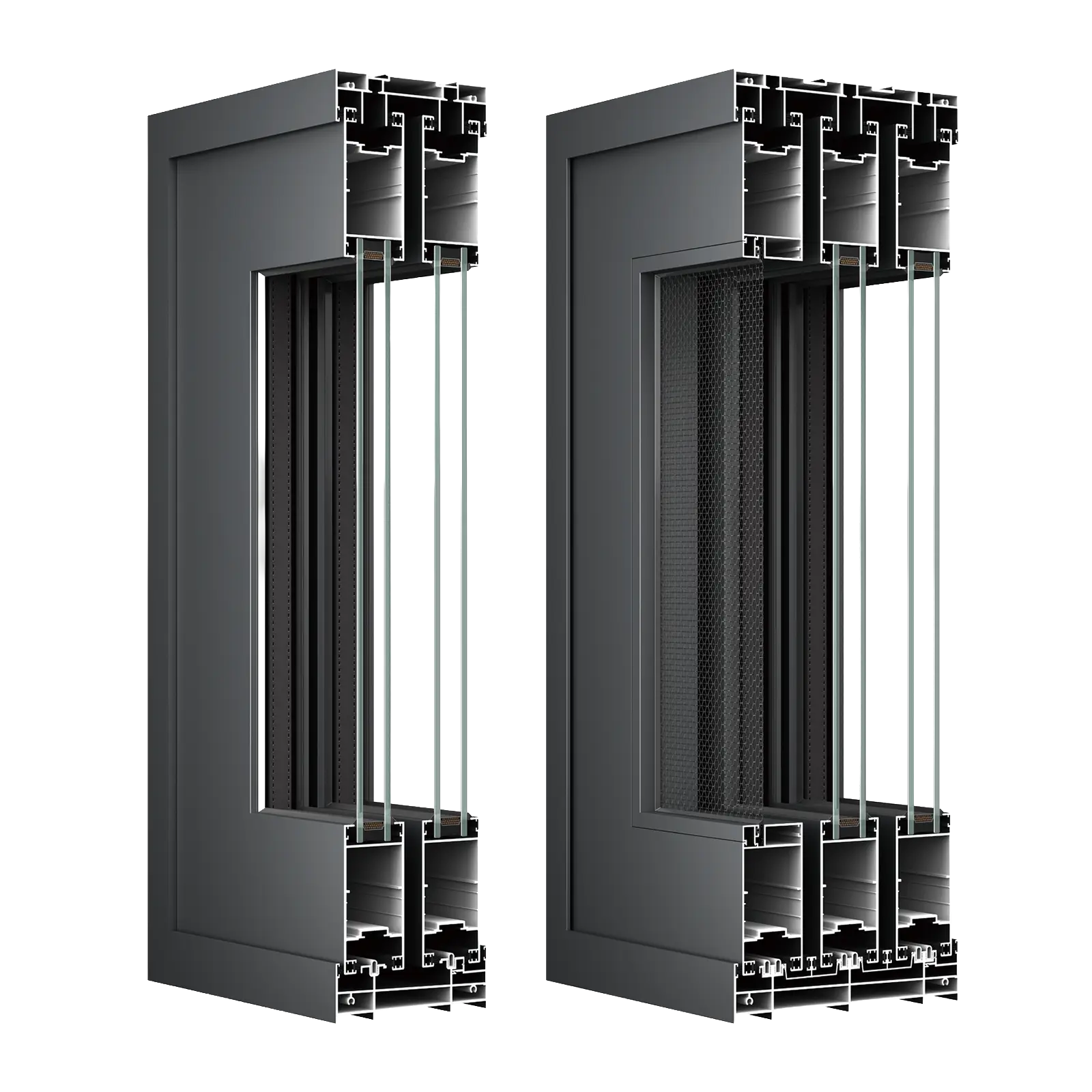

BIOZE 100 Heavy-Duty Sliding Door System Profile Cross Section Detail

OPENING METHODS

2-Track 2-Panel

2-Track 4-Panel

3-Track 2-Panel with Insect Screen

3-Track 3-Panel

3-Track 4-Panel with Insect Screen
